Quick Details
| Light Source: | LED | Item Type: | Flood Lights | LED Light Source: | Epistar |
| Input Voltage(V): | AC85-265V | Lamp Power(W): | 30 | Lamp Luminous Flux(lm): | 3000 |
| Lamp Luminous Efficiency(lm/w): | 100 | CRI (Ra>): | 80 | Color Temperature(CCT): | Pure White |
| Beam Angle(°): | 120 Degree | Working Temperature(℃): | -40 - 60 | Working Lifetime(Hour): | 50000 |
| Lamp Body Material: | Aluminum Alloy | IP Rating: | IP65 | Certification: | CE, EMC, FCC, LVD, RoHS |
| Place of Origin: | Guangdong, China (Mainland) | Brand Name: | OEM | Model Number: | TG30 |
| LED Driver: | IP67 Constant current LED driver | Housing: | Die-casting aluminum housing | Heatsink: | Ultra-thin fins |
| LED array: | SMD2835, x60pcs / COB 30W | Installation: | Bolting, adjustable 180 degrees | Net weight: | 1.5kg |
| Dimensions: | 219 x 191 x 64 mm | Auto sensing: | PIR motor sensor | Replacement: | 100W HID |
| Application: | Outdoor floodlighting |
Packaging & Delivery
| Packaging Details: | Carton 51*40.5*38cm, Gross weight 35kg, x20pcs |
| Delivery Detail: | Two weeks |
Outdoor 30W LED PIR Flood Light with Motion Sensor
- Ultra-thin finned cooler, excellent cooling effect to support lifespan above 50,000 hours
- LED light sources SMD2835, or 50W COB LED module ,
- Auto-sensing with PIR motion sensor, maximizing energy saving
- Tempered glass light transmittance >90%, broken particles 50~100pcs
- Protection level IP65, suitable for outdoor floodlighting applications
TG30 – Outdoor 30W LED PIR Flood Light with Motion Sensor | |
Input | 85~265Vac, 50/60Hz, PF>0.95 |
Wattage | 30W |
Flux | 3,000lm, typical |
Optical efficacy | 90 ~ 110lm/W |
Correlated color temperature (CCT) | 3000K/4000K/6000K |
Color rendering index (CRI) | 70/80 |
LED Driver | IP67 Constant-current LED driver |
PIR motion sensor | Detection angle: 180 degrees Detection distance: 2~12m adjustable, or above 12m Time delay: 8 seconds ~ 10 minutes adjustable Ambient light: 2~2000 lux Installation height: 1.8m ~ 2.5m, adjusting knobs downward |
Housing | Die-casting aluminum housing |
Heatsink | Ultra-thin fins |
LED array | SMD2835, x60pcs, or COB 50W |
Temperature | -40ºC ~ +50ºC (operation) |
-25ºC ~ +65ºC (storage) | |
Humidity | Up to 99% RH |
Protection | IP65 |
Certifications | CE, RoHS, FCC |
Lifespan | >50,000H |
warranty | 5 years |
Installation | Bolting, adjustable 180 degrees |
Net weight | 1.5kg |
Dimensions | 219 x 191 x 64 mm |
Packaging size/weight | Carton 51*40.5*38cm, Gross weight 35kg, x20pcs |
Price | USD 26.5 / piece, MOQ 20pcs |
Note: The above data are typical specifications for information only. Detailed and specific parameters of each product are subject to the sales order or contract. Related datasheets and test reports are provided upon request. | |

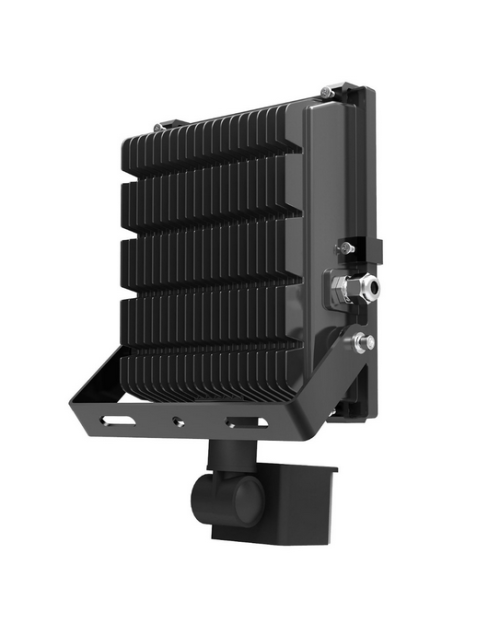

Ultra-thin cooler
Convection type heatsink is composed of snap-fit ultra-thin fins which create maximum heat radiating area, minimum weight and enough structural strength.
Breather
Innovative breather design eliminates air pressure difference inside and outside, eliminating vapor or condensation while keeping seal airtight.
PIR motion sensor
Detection angle: 180 degrees Detection distance: 2~12m adjustable, or above 12m (customized) Time delay: 8 seconds ~ 10 minutes adjustable Ambient light: 2~2000 lux Installation height: 1.8m ~ 2.5m, adjusting knobs downward | Instructions: Knob LUX: Controls whether to work in daytime or nighttime. Sun symbol: The sensor works in daytime. Moon symbol: the sensor does not work in daytime.
Knob TIME: Adjusts the time delay when the detector switches off after infrared heat source departure.
Knob SENS: Adjusts the detector sensitivity. |

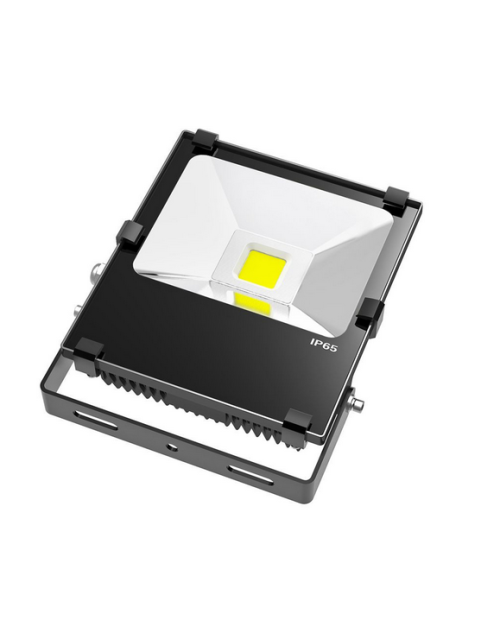

LED light source
Supports LED light sources SMD2835, 50W COB or Citizen 50W LED modules
Protection level IP65
Treatment of electrophoresis process
Bracket adjustable in 180 degrees
High-purity aluminum reflector
4mm-thick tempered glass
Stainless steel fasteners
Applications: Outdoor lighting applications such as parking lot, gym center, bulletin board, architecture lighting, and so on
Thermal test results of 30W LED flood light
Optical test results of 30W LED flood light
Dimensions
